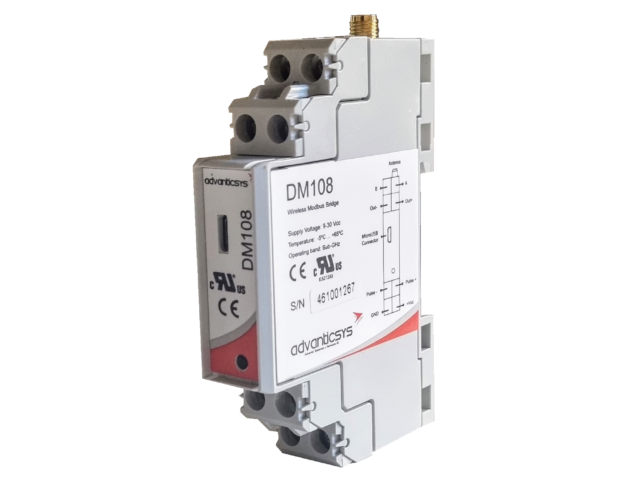

DM-108 Long Range Wireless Modbus RS485 Bridge
Wireless Modbus bridge

DM-108

The DM-108 is a long-range wireless Modbus RS485 bridge, offering secure communication and global compatibility. It supports mesh topologies with multihop technology for enhanced network coverage.


Long-Range Wireless

Up to 1 km range with global frequency support (865-928 MHz).

Mesh Topology

Multihop technology for extended network coverage.

AES 128-bit Encryption

Ensures secure data transmission

DIN-Rail Mounting

Easy installation for industrial environments.
  • Key features
  • Technical description

Long-Range Wireless Communication: Up to 1 km range on the ISM band with global frequency support (865-928 MHz), ensuring reliable long-distance data transmission.

Mesh Topology for Extended Coverage: Implements multihop mesh technology with up to 5 hops, supporting networks of up to 64 slaves without additional infrastructure.

Secure Wireless Data Transmission: AES 128-bit encryption provides robust security for all wireless Modbus RTU communications.

RS485 and Wireless Modbus: Combines RS485 and wireless Modbus RTU transmission, ensuring compatibility with both legacy and modern industrial systems.

Overall specification

Power supply: 9Vdc @ 80mA / 30Vdc @ 24mA.

Radio

Sensitivity: -104dBm typ.

RF Power: Up to +26 dBm.

Antenna: SMA Female connector – not included.

Interfaces

microUSB: Configuration port (19200 bps UART).

RS485: Up to 1.2 km distance, speed up to 19.2 kBaud.

Protocols

Modbus RTU. Wireless AES128 Encrypted Mesh.

Physical Characteristics

Dimensions: 18x89x59 mm.

Material: PC/ABS.

Protection type: IP20.
