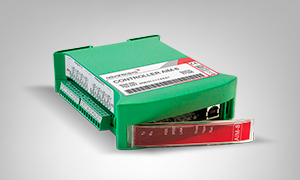

AIM-8

SKU: AIM-8

8-channels Analog Input Modbus Datalogger

Product Description

AIM-8 datalogger provides 8 analog channels with 4 different interfaces, including support for Pt100 probes as well as different levels of voltage and current inputs.

It can be used as extension module (Modbus slave) connected to any of our Industrial IoT gateways or any third party Modbus master.

It supports Modbus TCP and Modbus RTU protocols.

Compatible with our Industrial IoT Concordia Cloud Platform.

Title Type Size
AIM-8 Config Tool v1.3 application/vnd.microsoft.portable-executable 3 MB
AIM-8 Datasheet application/pdf 260 KB
AIM-8 User Manual application/pdf 651 KB

Additional Information

Overall specification

CPU: ARM7
Flash: 8 MB, data valid up to 5 years

Communication Interfaces

RS232: up to 15m, speed up to 57600 bps
RS485: up to 1.2 km (0.75 mi), max 32 transceivers, up to 57600 bps
Ethernet: RJ45 Twisted pair Ethernet 10/100 Mb, up to 100m
USB (configuration): type B, ver. 2.0

Analog inputs

Channels: 8
Input types: Pt 100, 0-5 V, 0-10 V, 0-20 mA/4-20mA

General

Power supply: 9-36 VDC / 10VA
Over voltage protection: >1000V (max. 5 sec)
Power consumption: <10 VA

Physical Characteristics

Dimensions: 120x101x35 mm
Weight: 170 g
Case fixing type: DIN rail
Safety class: IP20
