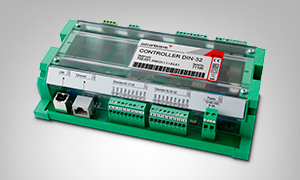

DIN-32
32-channel Modbus TCP / RTU pulse counter
Product Description
DIN-32 is a pulse counter and datalogger created for measuring and logging different kinds of discrete signals like those from energy/water meters, limit switches, push buttons, selector switches or relay contacts.
It can be used as extension module (Modbus slave) connected to any of our Industrial IoT gateways or any third party Modbus master.
Compatible with our Industrial IoT Concordia Cloud Platform.
- It provides up to 2 serial ports (RS232/RS485) enabling connection of up to 31 Modbus RTU devices that can be read/written from any Modbus master through Ethernet port.
- It also includes an Ethernet port so that data can be requested through Modbus TCP protocol. It can also act as gateway, allowing read/write operations of any of the Modbus devices connected to serial ports through Modbus TCP protocol
| Title | Type | Size | |
|---|---|---|---|
|
DIN-32 Config Tool v1.46 | application/vnd.microsoft.portable-executable | 2 MB |
|
DIN-32 User Manual | application/pdf | 898 KB |
|
|
DIN-32 Datasheet | application/pdf | 258 KB |
Additional Information
| Overall specification | CPU: ARM7 |
|---|---|
| Communication Interfaces | RS232 (1 port): up to 15m, speed up to 57600 bps |
| Pulse Inputs | Channels: 32 |
| General | Power supply: 9-36 VDC / 10VA |
| Physical Characteristics | Dimensions: 197x128x50 mm |
