Industrial IoT Gateway - Wireless M-Bus Concentrator with MQTT support

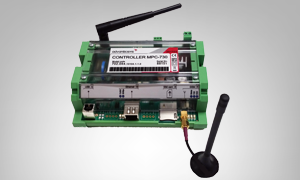

Product Model: MPC-730

Main Features

MPC-730 is an Industrial IoT (Internet of Things) gateway able to transmit data to cloud through Modbus and MQTT over Ethernet and 3G/GPRS.

The logged information can be also sent in csv file format to remote FTP servers.

Compatible with our Industrial IoT Concordia Cloud Platform.

  • Wireless M-Bus concentrator (868 / 433 MHz). S, T, R2, C, OMS (Open metering system) modes supported
  • Datalogger with records timestamp (RTC, Real Time Clock) synchronized through NTP protocol
  • Fully-configurable alarm reporting via SMS, Email and MQTT
  • Remote configuration and updates through GSM/GPRS or Ethernet port
  • 8GB uSD card included
  • FTP client able to send periodic data in csv file format
  • FTP server capability, being able to store data in external uSD card
  • Protocols supported: Modbus RTU, Modbus TCP/IP, WM-Bus, M-Bus, FTP, MQTT

Our MPC-33x Config Tool eases the MPC-730 configuration process. User Manual and latest version is available in Resources tab.Additional info can be found at our Tech Resources Wiki



MPC-730 with 2xRS485 + 1xRS232 + 1xEthernet
MPC-730 with GSM/GPRS + WM-Bus (868MHz) + 1xRS485 + Ethernet
MPC-730 with UMTS/HSPA+ (900/2100MHz) + 1xMbus + 2xRS485 + 1xEth + 8GB uSD card
Other order codes on request
ITEM Specification
Overall specification
Flash 8 MB
uSD card included 8 GB
Communication Interfaces
RS232 up to 15m (50ft), speed up to 57600 bps
RS485 up to 1.2 km (0.75 mi), max 32 transceivers, up to 57600 bps
USB (configuration) type B, ver. 2.0
M-Bus Up to 8 devices
WM-Bus Up to 50 devices - antenna included
Ethernet twisted pair Ethernet 10/100 Mb, up to 100m (328ft)
GPRS 3 bands 900/1800/1900 MHz - antenna included
UMTS/HSPA+ 900/2100MHz - antenna included
Modbus RTU, Modbus TCP/IP, WM-Bus, M-Bus, FTP, MQTT
Power supply 9-36Vcc/12-50Vcc
Over voltage protection >1000V
Power consumption <10VA
Physical Characteristics
Dimensions 147x128x50 mm
Weight 275 g
Case fixing type DIN rail
Safety class IP20
Type Name Size Modification Date
MPC-730 User Manual 4,779.23 KB 11/7/2017 16:27 PM.
MPC-33x Configuration Tool 3,480.05 KB 8/29/2018 10:11 AM.
MPC-730 Datasheet 265.21 KB 11/6/2017 09:57 AM.
MPC-730 USB Drivers 11,320.25 KB 11/6/2017 09:26 AM.
